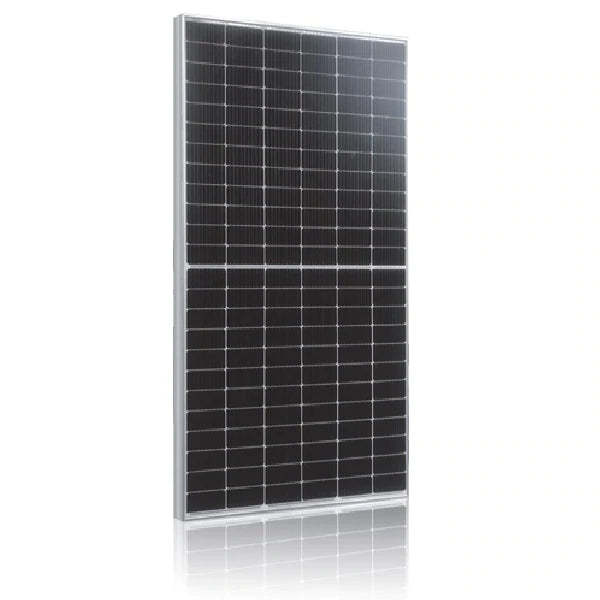

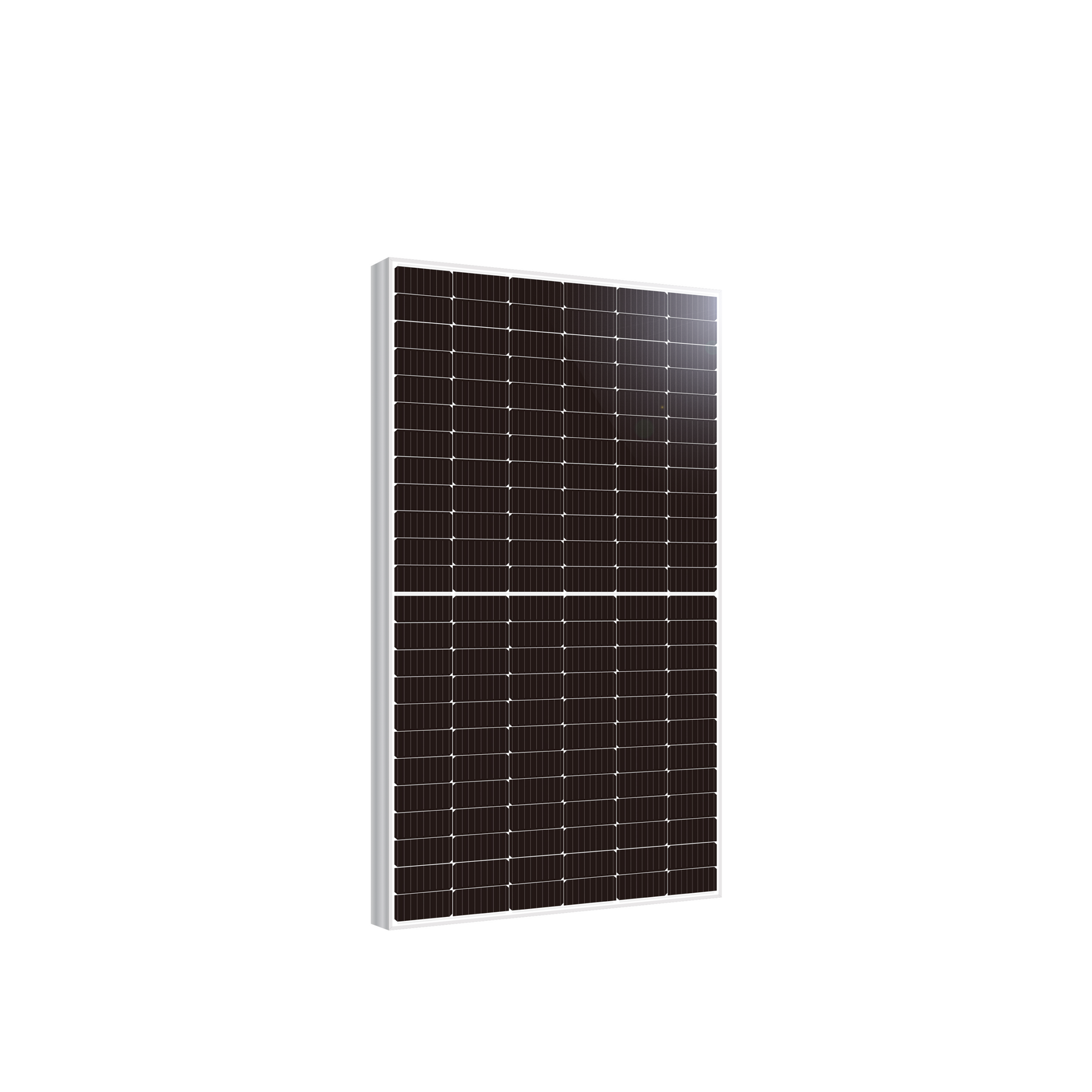

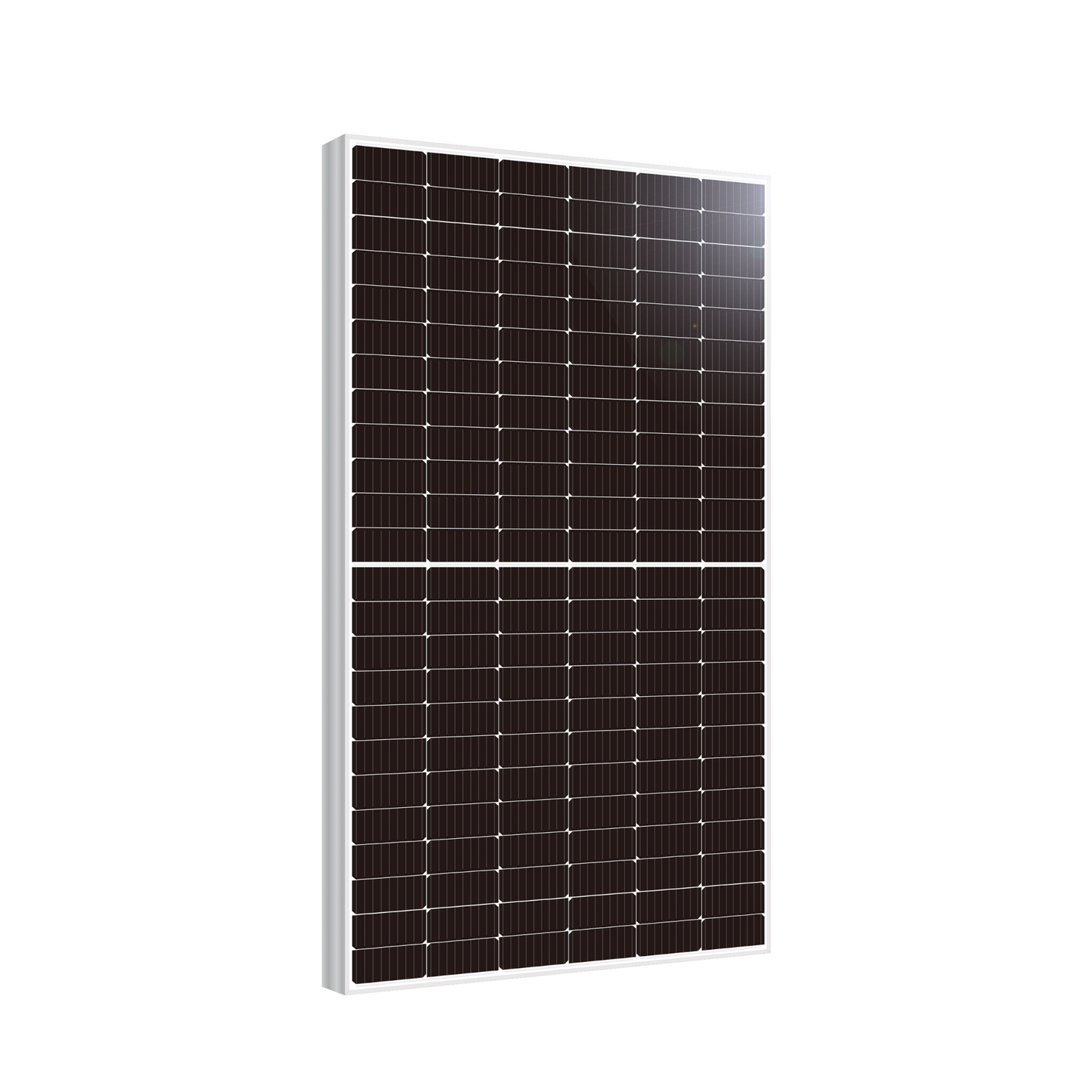

URE | 450W | 6''MONO Solar Panel

URE | 450W | 6''MONO Solar Panel

R 1,035.00 ZAR
R 1,750.00 ZAR R 1,035.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Bloomberg New Energy Finance Tier 1 Certified.
The module uses state-of-the-art cutting technology and advanced module manufacturing experience.

URECO Taiwan in South Africa | 144 Cell HCC STD Module 9BB

Key Features

  • Positive Power tolerance  +0~ +4.99 watt
  • 100% EL inline inspection - better module reliability
  • Withstands heavy loading front load 5400 Pa & rear load 2400 Pa
  • Ammonia resistance
  • Designed for 1500 VDC - Reduces the system BOS effectively
  • Excellent low light performance 3.5% relative eff.
    Reduction at low-irradiance (200W/m²)
  • MANUFACTURER PRODUCT GUARANTEE 12 YEARS
  • MANUFACTURER OUTPUT WARRANTY 25 YEARS



 Mechanical Data
Item  Specification
Cell Type 156.75x156.75mm Poly-crystal
Cell Orientation 72 (6x12)
Module Dimensions 1957x992x40mm
Weight 23.0 kg / 50.71 lbs
Front Cover 3.2mm high transmittance, reinforced glass
Back Sheet Anti-aging film
Frame Material Anodized aluminum alloy
Junction Box IP 68 , 3 diodes
Cable 4.0mm2
Connector

MC4 compatible connector


 Electrical Data

Item

Specification

Maximum Rating Power (Pmax)

440

Module Efficiency

20.24

Open Circuit Voltage (Voc)

49.47

Maximum Power Voltage

41.16

Short Circuit Current (Isc)

11.16

Maximum Power Current

10.69
*Standard Test Condition (STC): Cell Temperature 25 °C, Irradiance 1000 W/m², AM 1.5
*Values without tolerance are typical numbers. Measurement tolerance: ± 3%




 Operating Conditions


Item

Specification

Mechanical Load

5400 Pa

Maximum System Voltage

C1500 VDC

 Series Fuse

20 A

 Rating Operating Temperature

-40 to 85 °





*Shipping costs will be effected due to size and weight of the panels*
