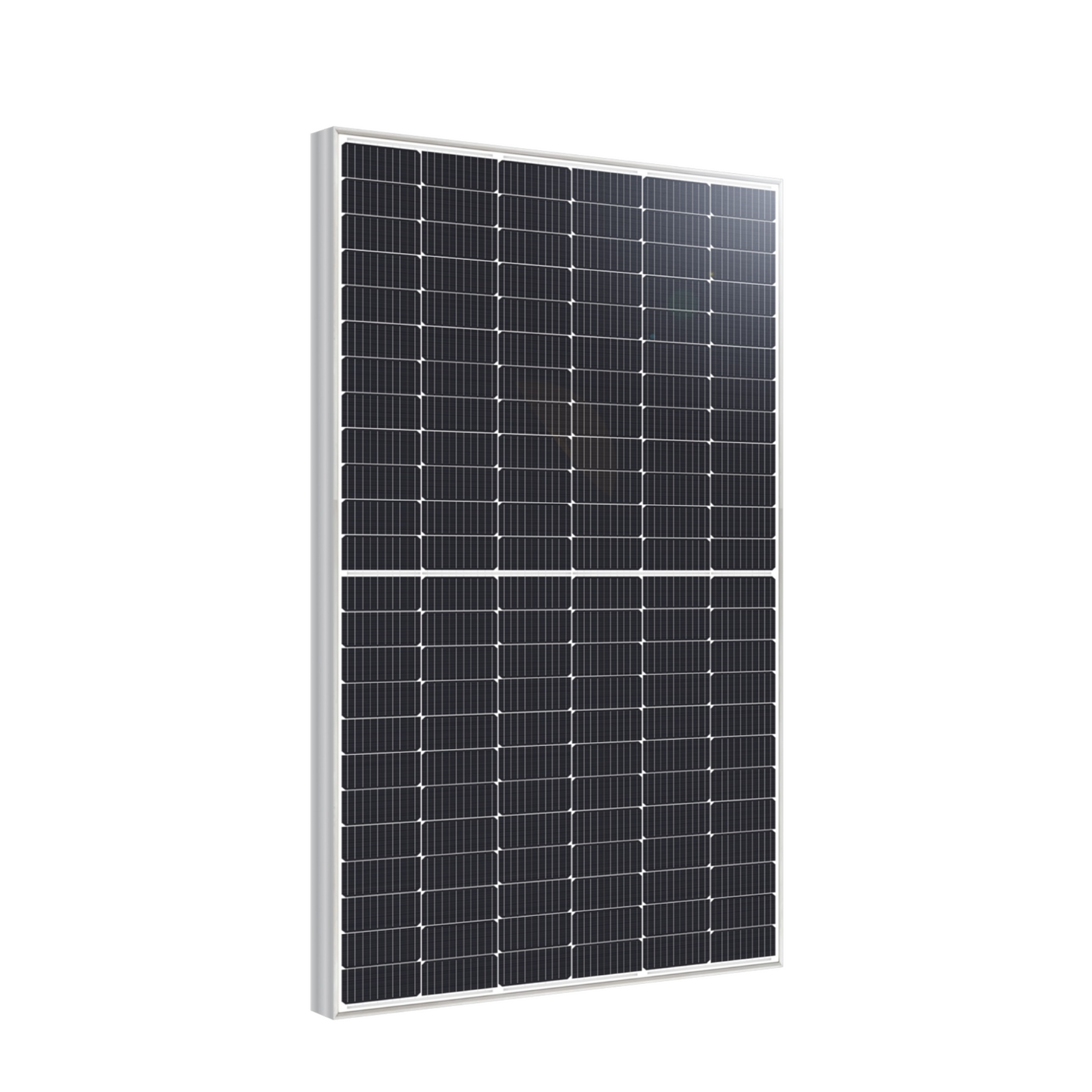

URE 540W Solar Panels – High-Efficiency 144 Cell HCC Module (10BB)
TÜV Certified | Bloomberg New Energy Finance Tier 1 Rated
Experience exceptional performance, durability, and industry-certified quality with URECO Taiwan’s 144 Cell Half-Cut Cell (HCC) Solar Panels – now available in South Africa through our exclusive supply line.
These advanced photovoltaic modules combine cutting-edge technology with precision engineering to deliver maximum energy yield, even in low-light conditions, making them a trusted choice for both residential and commercial solar installations.
Key Features & Benefits
✅ Positive Power Tolerance: Guaranteed output range of +0 to +5 watts for superior efficiency and performance reliability.
✅ 100% EL Inline Inspection: Every module undergoes rigorous Electroluminescence testing, ensuring high reliability and fault detection.
✅ Heavy-Duty Load Resistance: Engineered to withstand 5400 Pa front load and 2400 Pa rear load, ensuring resilience under harsh environmental conditions.
✅ Ammonia Resistant: Ideal for agricultural or high-exposure environments.
✅ 1500 VDC System Design: Compatible with high-voltage systems, effectively reducing Balance of System (BOS) costs.
✅ Superior Low-Light Performance: Delivers exceptional performance with only 3.5% efficiency reduction at low irradiance (200W/m²).
✅ Warranty-Backed Confidence:
12-Year Manufacturer Product Guarantee
25-Year Manufacturer Power Output Warranty
Applications
✔ Residential Rooftops
✔ Commercial Installations
✔ Agricultural Environments
✔ Industrial Solar Projects
Choose URE – a trusted global name in solar – and invest in long-term energy security, performance, and peace of mind.
|
Mechanical Data
|
| Item | Specification |
| Cell Type | Monocrystalline solar cell series strings |
| Cell Orientation | 12x12 |
| Module Dimensions | 2279mm (L) x 1134 mm (W) x 35 mm (D)² |
| Weight | 28.5 kg / 62.83 lbs |
| Front Cover | 3.2mm thickness: High Transmission Glass |
| Back Sheet | Anti-Aging Film |
| Frame Material | Silver Anodized Aluminum Alloy |
| Junction Box | IP >=68 , 3 diodes |
| Cable | 300mm in length |
| Connector |
MC4 compatible connector |
| Electrical Data |
|
Item |
Specification |
|
Maximum Rating Power (Pmax) |
550W |
|
Module Efficiency |
21.28% |
|
Open Circuit Voltage (Voc) |
50.28V |
|
Maximum Power Voltage |
42.11V |
|
Short Circuit Current (Isc) |
13.90A |
|
Maximum Power Current |
13.06A |
*Values without tolerance are typical numbers. Measurement tolerance: ± 3%
| Operating Conditions |
|
*Shipping costs may be affected due to size and weight of the panels*
