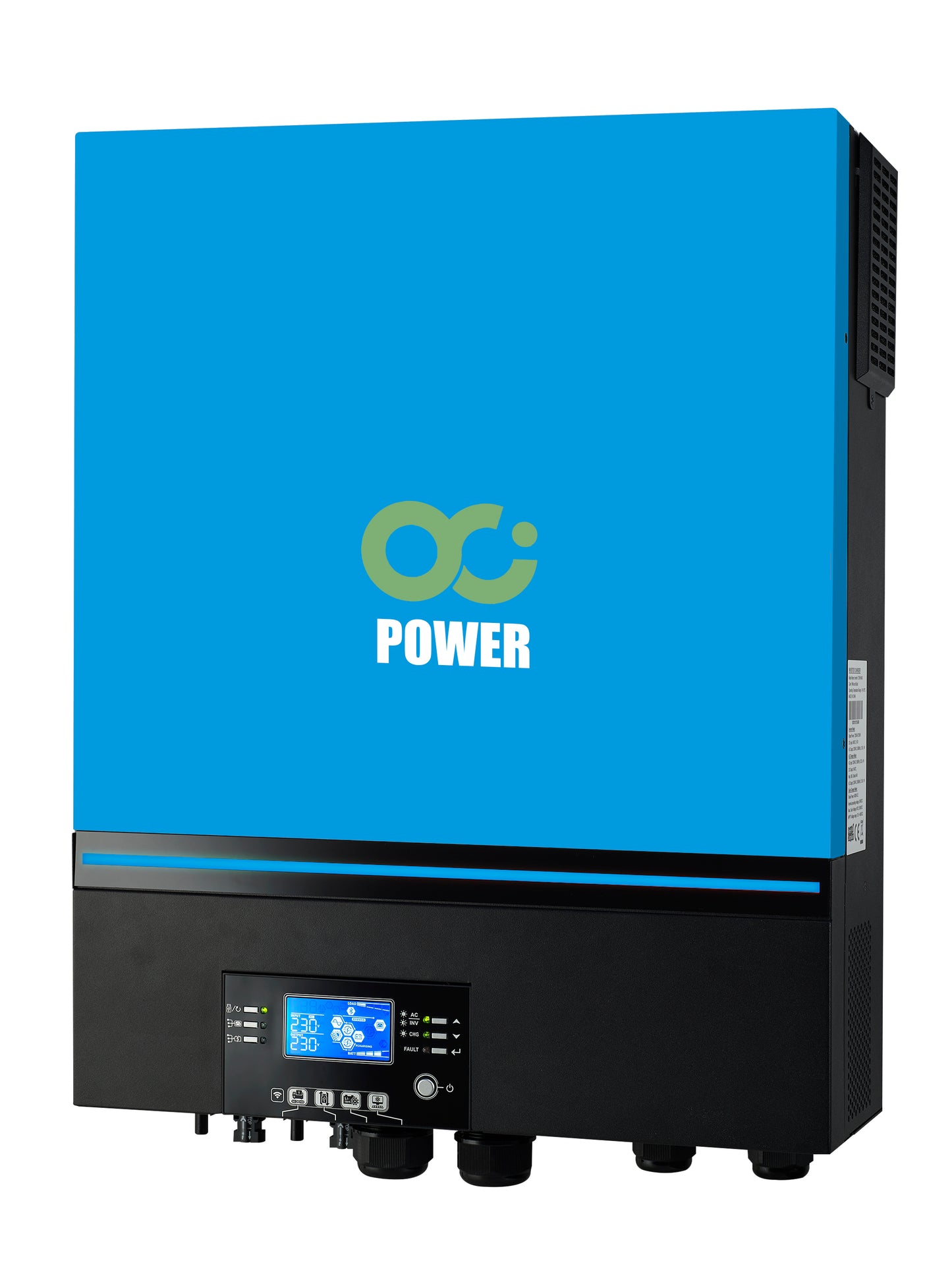

Axpert MAX | MX-7.2KVA Inverter (Hybrid Off-Grid Inverter)

  • Sale
  • Regular price R 21,300.00


• Customizable status LED bar with RGB lights
• Built-in wifi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Selectable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so on
• Parallel operation up to 6 units



MODEL OCI-MX-7.2K

Rated Power - 7200VA / 7200W

PARALLEL CAPABILITY - Yes, up to 6 units



INPUT

Voltage - 230 VAC

Selectable Voltage Range - 170-280 VAC (For Personal Computer) &  90-280 VAC (For Home Appliances)

Frequency Range - 50 Hz/60 Hz (Auto sensing)



OUTPUT

AC Voltage Regulation (Batt. Mode) - 230VAC ± 5%

Surge Power - 15000VA

90% ~ 93%

Transfer Time - 15 ms (For Personal Computers); 20 ms (For Home Appliances)

Waveform - Pure sine wave

No Load Power Consumption < 70W

Optional DC Voltage - 12 VDC ± 5%, 100W



BATTERY

Battery Voltage - 48 VDC

Floating Charge Voltage - 54 VDC

Overcharge Protection - 66 VDC



SOLAR CHARGER & AC CHARGER

Solar Charger Type - MPPT

Maximum PV Array Power - 8000W (4000W x 2)

MPPT Range @ Operating Voltage - 90 ~ 450 VDC

Maximum PV Array Open Circuit Voltage - 500 VDC

Maxmum Solar Charge Current - 80 A

Maximum AC Charge Current - 80 A

Maximum Charge Current - 80 A



PHYSICAL

Dimension - D x W x H (mm) 147.4 x 432.5 x 553.6

Net Weight (kgs) - 18.4



OPERATING ENVIRONMENT

Humidity - 5% to 95% Relative Humidity (Non-condensing)

Operating Temperature: -10°C to 50°C

Storage Temperature: -15°C to 60°C

STANDARD

Compliance Safety CE
