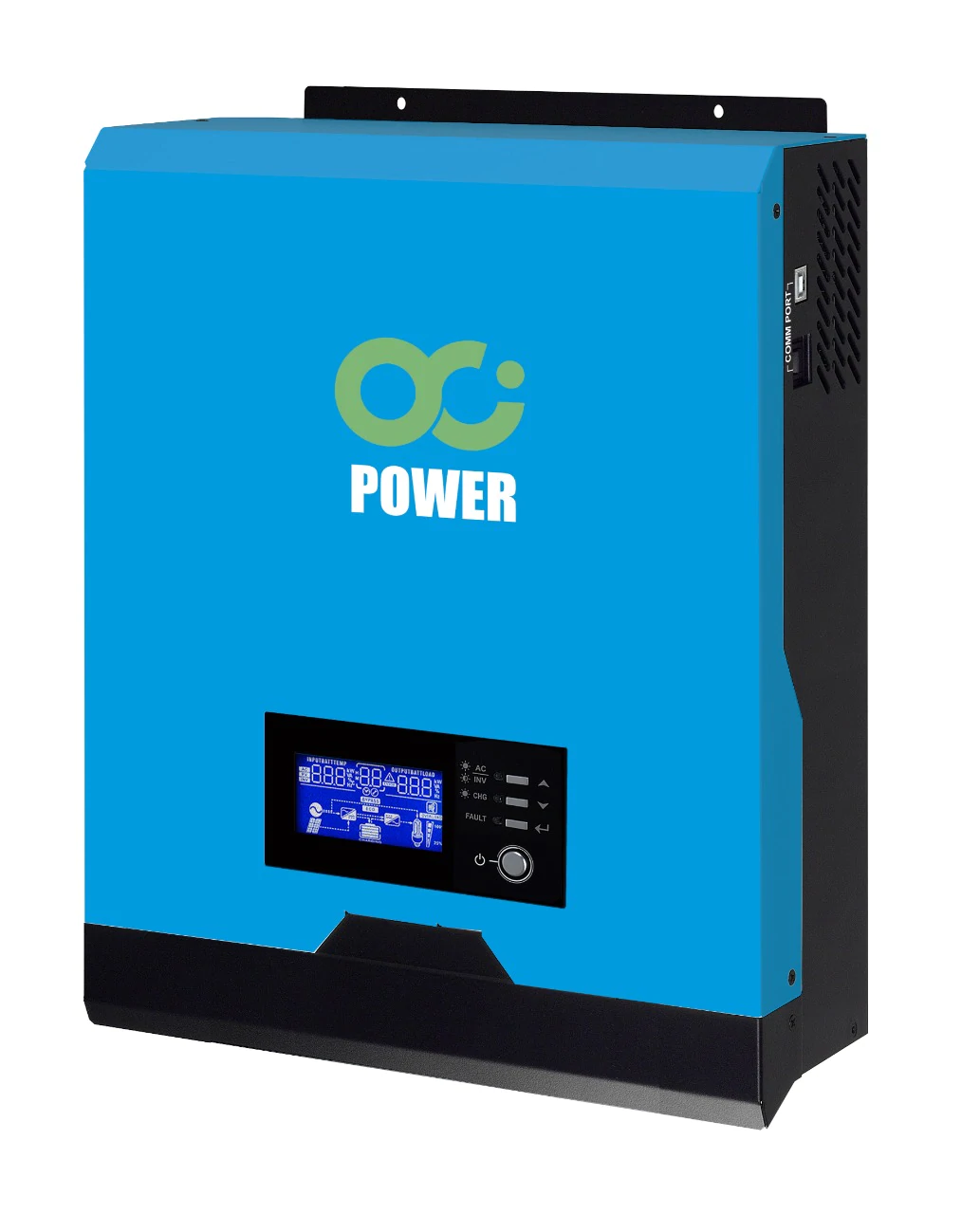

Axpert VM Value 3KVA/2.4KW 1KW MPPT 102 VDC (Hybrid Off-Grid Inverter)

Axpert VM Value 3KVA/2.4KW 1KW MPPT 102 VDC (Hybrid Off-Grid Inverter)

R 5,100.00 ZAR
R 6,380.00 ZAR R 5,100.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Pure sine wave solar inverter
  • Selectable high power charging current
  • Wide DC input range
  • Selectable input voltage range for home appliances and personal computers
  • Configurable AC/solar input priority via LCD setting
  • Compatible to AC mains or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery perform
  • Cold start function
Model Axpert VM 3000 Value
Voltage input 230 VAC
Selectable voltage range

170-280 VAC( for personal computers)

90-280 VAC(for home appliances)
Frequency range 50Hz/60Hz (Auto
AC voltage regulation(Batt. mode) 230VAC  (±) 5%
Surge power 600VA
Efficient (Peak) 90% - 93%
Transfer time

10ms (for personal computers)

20ms(for home appliances)
Waveform Pure sine wave
Battery Voltage 24 VDC
Floating charge voltage 27 VDC
Overcharge protection 31 VDC

 SOLAR CHARGER & AC CHARGER
Solar charger type MPPT
Maximum PV array open circuit voltage 102 VDC
Maximum PV array power 1000 W
MPP range @ operating voltage 30-80 VDC
Maximum solar charge current 40 A
Maximum AC charge current  25 A
Maximum charge current 60 A
 PHYSICAL
Dimension D x W x H(mm) 88 x 257.6 x 320
 Net weight 5. 5.7
Communication interface  USB/RS232
 OPERATING ENVIRONMENT
Humidity 5% to 95% relative humidity (non-condensing
 Operating temperature -10 °C TO 50 °C
Storage temperature -15 °C TO 60 °C
