BT2410 6V & 12V Advanced Battery Tester & Electrical System Analyzer
DHC’s Flagship Tester — Designed for Professionals Who Demand the Best
The BT2410 represents the pinnacle of DHC's battery testing technology—a next-generation, handheld diagnostic tool built for modern workshops that require superior accuracy, performance, and flexibility. Designed with over 30 years of battery testing expertise, it is the ultimate solution for professionals who want more power, more precision, and more control.
Whether you're running a high-volume garage, a specialist workshop, or an advanced diagnostics center, the BT2410 gives your business an unmatched edge in battery and electrical system analysis.
Why Upgrade to the BT2410?
-

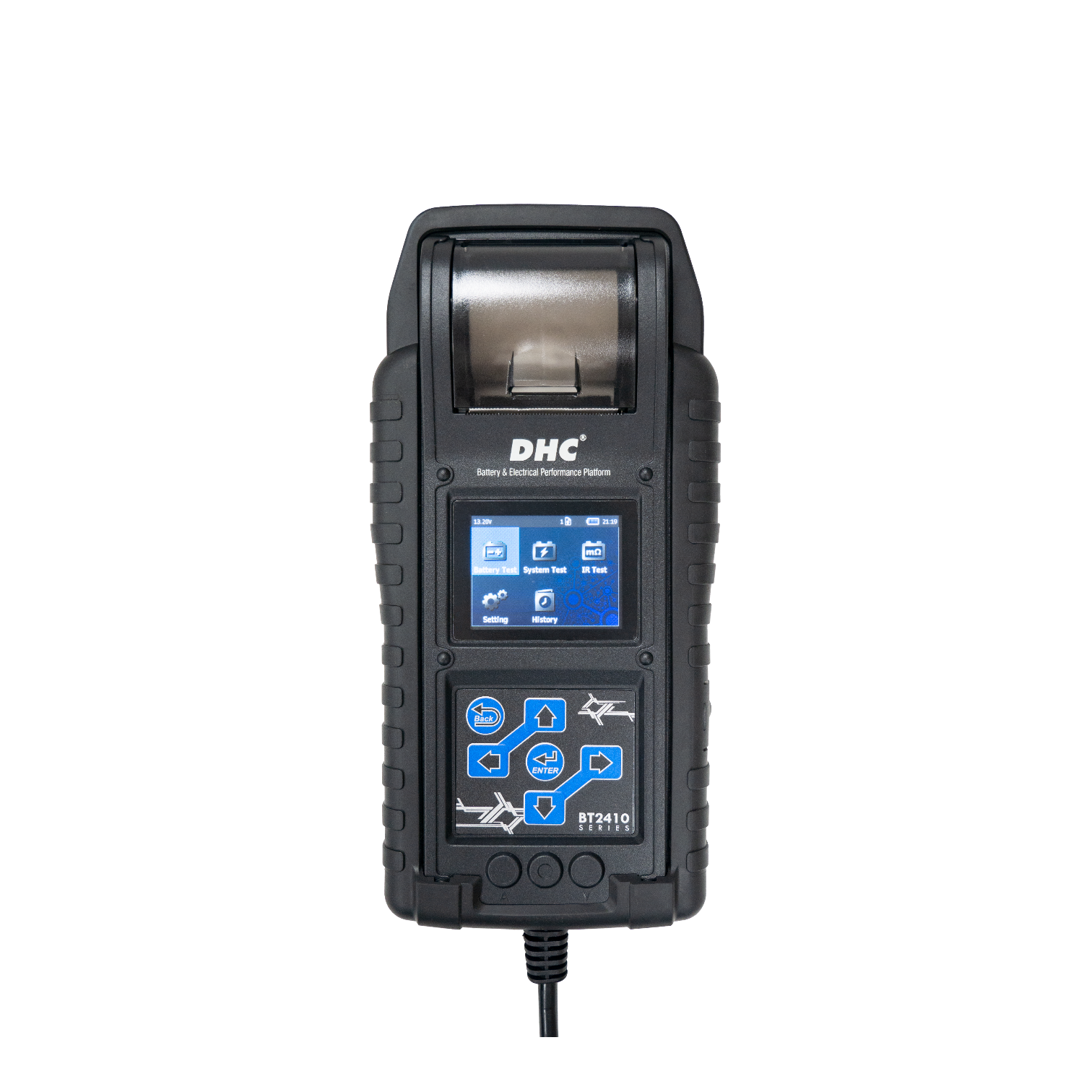

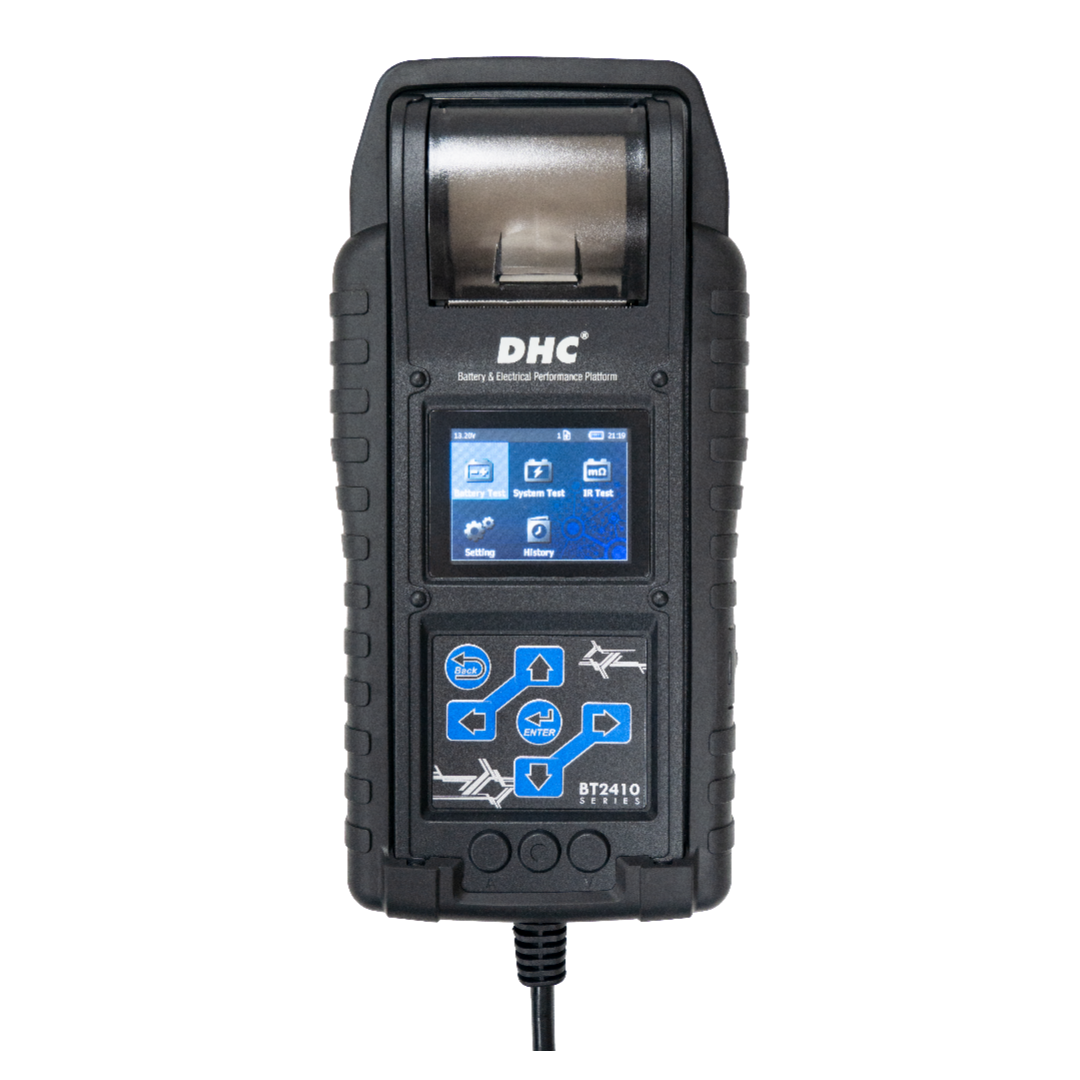

Next-Level User Interface
-
Brilliant TFT-LCD colour display delivers crisp, intuitive visuals
-
Smooth and responsive virtual keyboard for fast data input
-
User-friendly layout ensures quick learning curve and easy navigation
-
-
Professional Software Integration
Includes companion PC software suite for:-
Test result download and storage
-
Report generation and export
-
In-field firmware upgrades for always-current performance
-
-
Intelligent Clamp & Cable Diagnostics
Built-in diagnostics ensure cable and clamp performance is optimal, preserving test accuracy and reducing misreads. -
Enhanced Battery Power Options
Unlike standard models, the BT2410 supports a versatile range of battery types, including:-

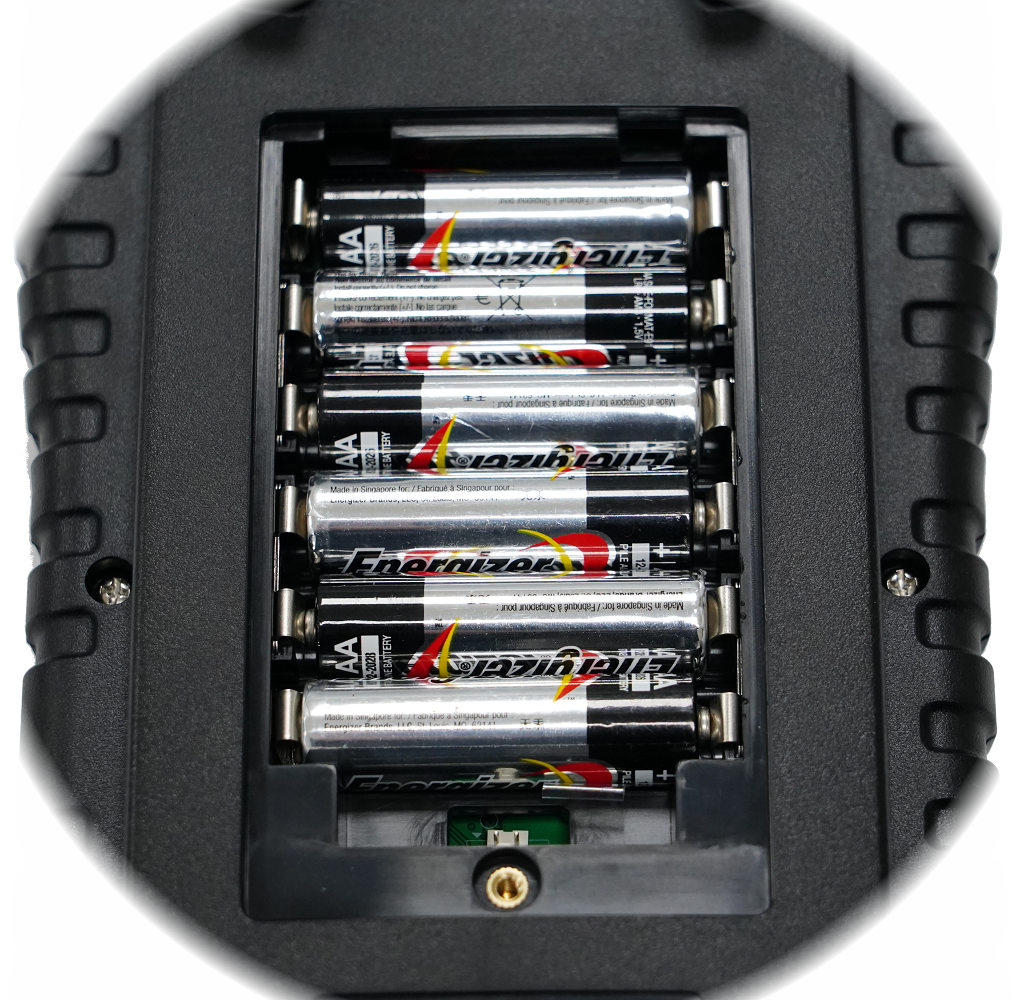

AA alkaline batteries
-
AA NiMH rechargeable batteries
-

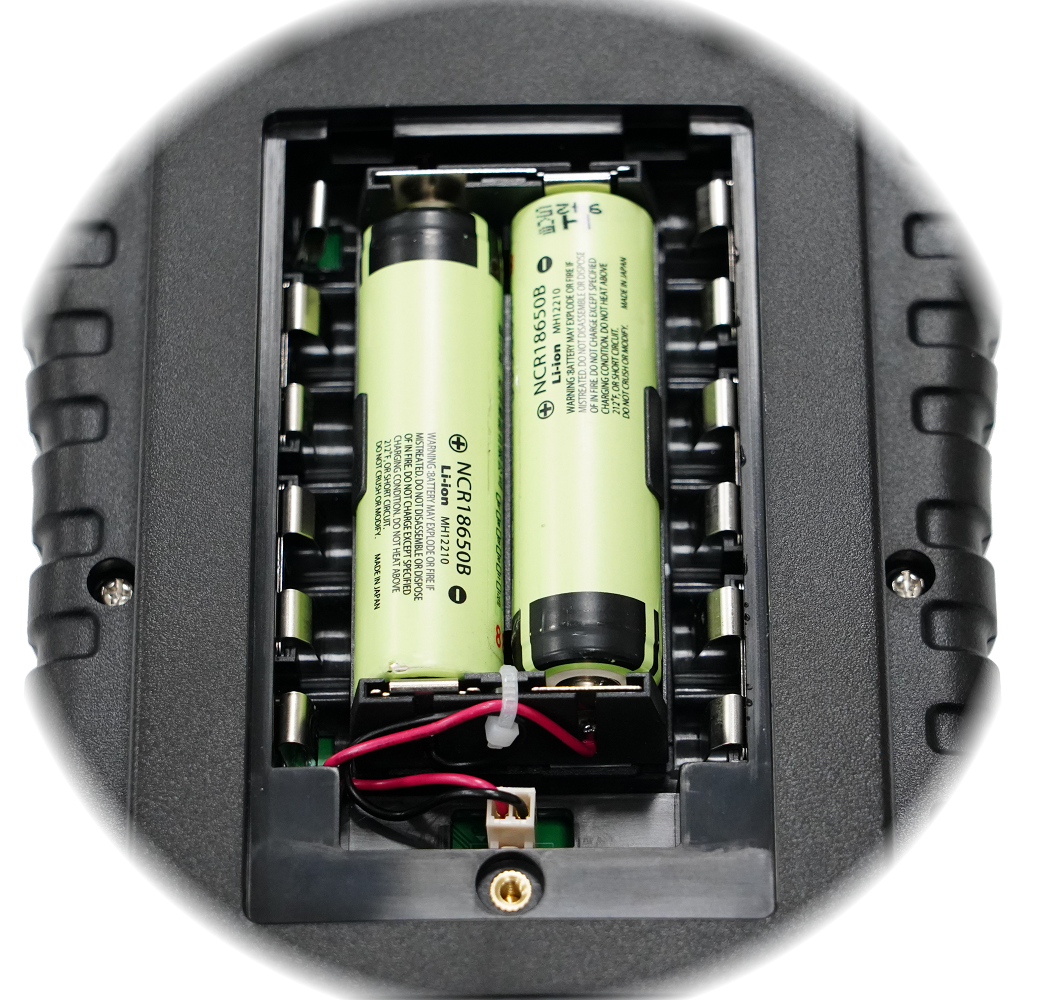

18650 Li-Ion rechargeable batteries — recommended by DHC for longest runtime and best performance
-
-
Built for the Future
Firmware can be updated via PC to adapt to future battery types and system standards, protecting your investment long-term.
Perfect For:
-
High-throughput service centers
-
Technical teams needing detailed reporting
-
Mobile diagnostic services
-
Professionals seeking a premium testing tool that evolves with the market
BT2410 isn’t just a battery tester.
It’s a professional-grade diagnostic platform built to keep your workshop ahead of the curve.
BT2410 Product Specification
| Model Number | BT2410 |
|---|---|
| Application | 6V and 12V battery tests 12V start-stop battery tests 12V and 24V cranking/charging system tests Internal resistance tests |
| Supported Battery Types | Flooded, AGM Flat, AGM Spiral, EFB, VRLA/GEL |
| Supported Battery Ratings | CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA |
| Operating Range | 25 to 3,000 CCA(SAE) |
| Voltage Range | 1V to 32V |
| Sensor Array | - |
| Wireless Connection | - |
| Wired Connection | USB Type-A |
| Firmware Update | Yes (via PC Software) |
| Cloud Data Management | - |
| PC Software | Yes |
| Test Code and Test Counter | Yes (with support to recall and print test results of the last 7 days) |
| Printer | 2-inch thermal printer |
| Display | Coloured TFT-LCD (240x320) |
| Input Device | 6-key keypad (up, down, left, right, enter, back) |
| Clamp-Cable Set Length | 1.8 metres (approx. 5.9 feet) |
| Detachable Cable | Yes |
| Internal Battery Support | AA Alkaline/NiMH batteries 18650 Li-Ion batteries |
| Voltage Probe | - |
| Amp Clamp | - |
| Dimensions (L x W x H) | 285 x 140 x 75 mm (approx. 11.2 x 5.5 x 3 inches) |
| Operating Languages | English, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish (more languages possible) |
