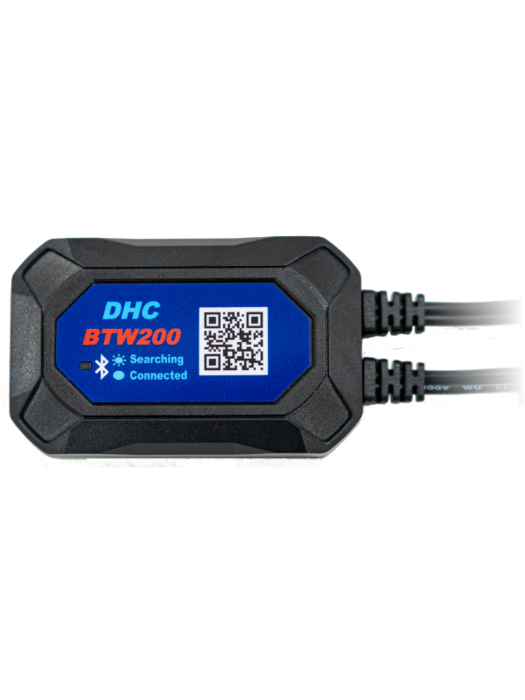

BTW200 | WIRELESS DIGITAL BATTERY SYSTEM ANALYZER

Features:

• Battery Monitor

  Real time battery monitoring and sends out notification automatically.

• Battery, Cranking, & Charging system tester

  12V and 12V START-STOP battery tests
  12V & 24V cranking/charging system tests

• Start/Stop Battery Test Available

  Performs accurate test for Start/Stop batteries.

• Graphical User Interface

  Interactive interface makes the operation easier and provides the test results clearly.

• Vehicle & Battery Info Available

  Supports VIN & Battery S/N scan

• Customer & Shop Info Available

  Capable of editing & saving customer & shop info.

• Calendar

  Easily identifies which and when that the test has been performed from the calendar.

• Remote Control via Applications

  All the test procedures are remotely controlled by either iOS or Android applications.

• Share Test Results Capability

  Test results cold be share via communication applications or email

• Cloud Data Management Capability

  Supports DHC cloud data management service

• Field Upgrade

  Upgrades the BTW200 via DHC applications.

• Name the Tester

  Able to name different testers to easily identify multiple BTW200 testers.

• Group Test Capability

  Able to perform group/batch battery test.



  BTW200 Product Specification

  Model Number	BTW200
  Application	12V battery / 12V START-STOP battery test 12V & 24V cranking/charging system test
  Supported APP	Both iOS & Android applications are available Android 5.0 and above / iOS 10 and above
  Wireless connection	Bluetooth 4.2 (BLE) RF Frequency: 2.4GHz
  DHC Cloud Services (mybatteryexpert.com)	Supported
  Supported Battery Types	Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB
  Battery Ratings	CCA/SAE, EN, JIS, DIN, IEC, CA/MCA
  Operating Range	40~2,000 CCA(SAE)
  Voltage Range	5V ~ 31.5V
  Dimensions (mm)	70 (L) x 45(W) x 15(H)
  Languages	English, French, Spanish, German, Italian, Portuguese
